Specifications
Item
MIG/MAG HRBN 400 Air-Cooled CO2/Mixed Shielded Welding Torch
Rating
420A CO2/350A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.6mm
Rear Connector
Bernard Connector, Euro Connector
Packing
1set/box neutral packing, 5sets/Carton Box
Certification
ISO9001, CCC, CE,
ROHS, TUV
Welding Torch Liner
44110
Steel Liner 1.2-1.6mm, 3m
44115
Steel Liner 1.2-1.6mm, 4.5m
Welding Gas Nozzle/ CO2 torch nozzle
N-5818C
Nozzle ￠15.8 Copper STD.
N-5818B
Nozzle ￠15.8 Brass
Welding Contact tip / Torch tip
T-030
Contact Tip E-CU 0.8mm
T-035
Contact Tip E-CU 0.9mm
T-039
Contact Tip E-CU 1.0mm
T-045
Contact Tip E-CU 1.2mm
T-052
Contact Tip E-CU 1.4mm
T-062
Contact Tip E-CU 1.6mm

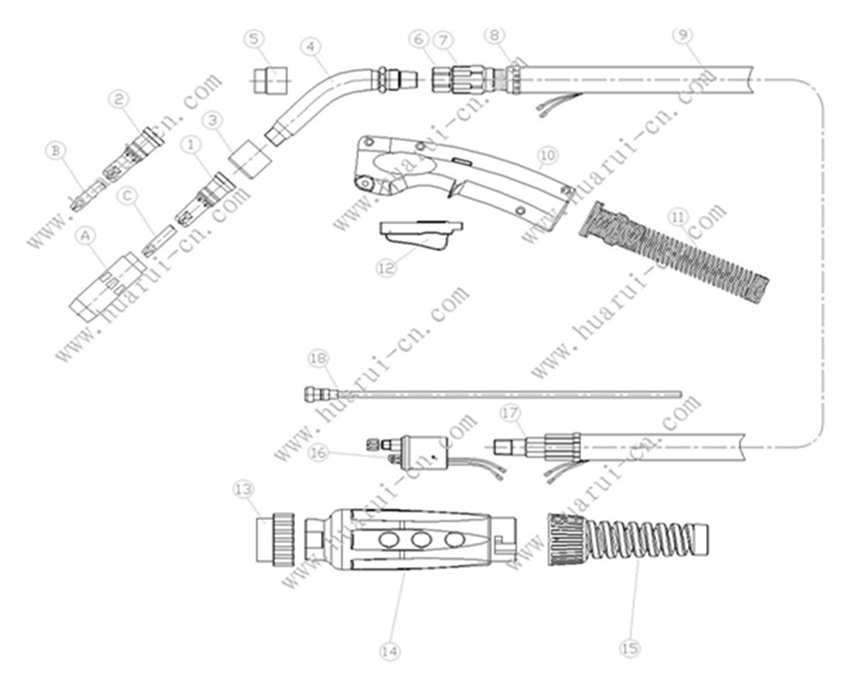

Welding Torch Spare parts
D-1
Tip Holder
10012
Insulator
D-1
Tip Holder
10012
Insulator
QT3-45
Swan Neck
HR4313B
Torch Body
QT3-45
Swan Neck
HR4313B
Torch Body
