Specifications
Item
MIG/MAG HRES250 Air-Cooled CO2/Mixed Shielded Welding Torch
Rating
250A CO2/ 220A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm
Rear Connector
Esab Connector, Esab Euro Connector
Packing
1set/box neutral packing, 5sets/Carton Box
Certification
ISO9001, CCC, CE,
ROHS, TUV
Welding Torch Liner
C366-549-882-B
Steel Liner 0.6-0.8mm, 3m
C366-549-883-B
Steel Liner 0.6-0.8mm, 4.5m
C366-549-884
Liner 0.9-1.0mm,3m
C366-549-885
Liner 0.9-1.0mm,4.5m
C366-549-886
Liner 1.2mm,3m
C366-549-887
Liner 1.2mm,4.5m
Welding Gas Nozzle/ CO2 torch nozzle
A366-854-881
Nozzle ￠14mm
A366-946-881
Nozzle ￠12mm
Welding Contact tip / Torch tip
B153-500-001
Contact Tip E-CU M6*30*0.6mm
B153-500-002
Contact Tip E-CU M6*30*0.8mm
B153-500-003
Contact Tip E-CU M6*30*0.9mm
B153-500-004
Contact Tip E-CU M6*30*1.0mm
B153-500-005
Contact Tip E-CU M6*30*1.2mm

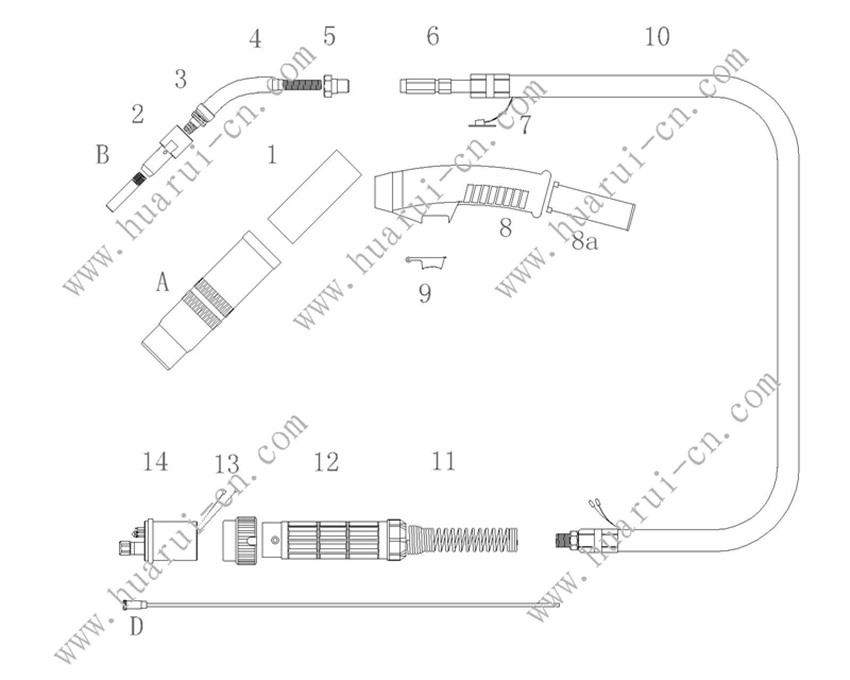

Welding Torch Spare parts
D366-396-002
Nozzle Insulator
D366-314-001
Gas Diffuser
D366-396-002
Nozzle Insulator
D366-314-001
Gas Diffuser
D366-397-001
Diffuser Insulation
D366-315-880
Swan Neck
D366-397-001
Diffuser Insulation
D366-315-880
Swan Neck
