Specifications
Item

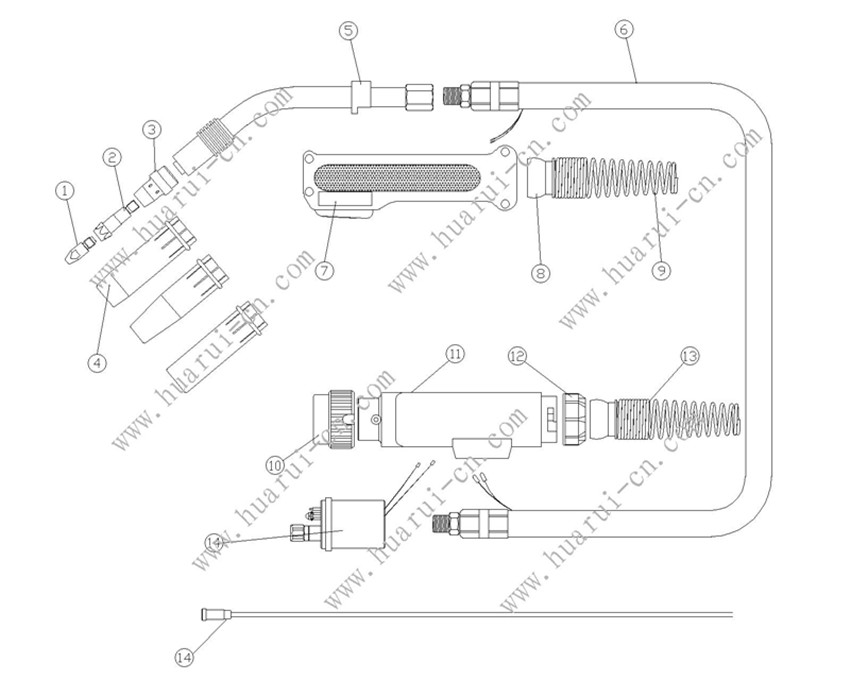

MIG/MAG HRMB40KD Air-Cooled CO2/Mixed Shielded Welding Torch
Rating
380A CO2/ 360A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.0-2.4mm
Rear Connector
Euro
Connector
Packing
1set/box neutral packing, 5sets/Carton Box
Certification
ISO9001, CCC, CE,
ROHS, TUV
Welding Torch Liner
C4001
Red Steel Liner 1.0-1.2mm, 3m
C4002
Red Steel Liner 1.0-1.2mm, 4m
C4003
Red Steel Liner 1.0-1.2mm, 5m
C4004
Yellow Steel Liner 1.6mm,3m
C4005
Yellow Steel Liner 1.6mm,4m
C4006
Yellow Steel Liner 1.6mm,5m
C4007
Green Steel Liner 2.0-2.4mm,3m
C4008
Green Steel Liner 2.0-2.4mm,4m
C4009
Green Steel Liner 2.0-2.4mm,5m
Welding Gas Nozzle/ CO2 torch nozzle
A4001
Nozzle Cylindrical
A4002
Nozzle Conical
A4003
Nozzle Tapered
Welding Contact tip / Torch tip
B4001
Contact Tip E-CU M8*30*1.0mm
B4002
Contact Tip E-CU M8*30*1.2mm
B4003
Contact Tip E-CU M8*30*1.6mm
B4004
Contact Tip E-CU M8*30*1.0Amm
B4005
Contact Tip E-CU M8*30*1.2Amm
B4006
Contact Tip E-CU M8*30*1.6Amm
Welding Torch Spare parts
D4001
Contact Tip Holder
D4002
Gas Diffuser
D4001
Contact Tip Holder
D4002
Gas Diffuser
D4003
Swan Neck
D4003
Swan Neck
