Specifications
Item
MIG/MAG HRSBME 470 Air-Cooled CO2/Mixed Shielded Welding Torch
Rating
490A CO2/460A Mixed Gas , Duty Cycle 60% Wire Diameter: 1.2-2.4mm
Rear Connector
Euro
Connector
Packing
1set/box neutral packing, 5sets/Carton Box
Certification
ISO9001, CCC, CE,
ROHS, TUV
Welding Torch Liner
124.0041
Yellow Steel Liner 1.6mm, 3m
124.0042
Yellow Steel Liner 1.6mm, 4m
124.0044
Yellow Steel Liner 1.6mm, 5m
Welding Gas Nozzle/ CO2 torch nozzle
HRME534
Nozzle ￠15 L38
HRME515
Nozzle ￠19 L38
HRME514
Nozzle ￠15 L35
HRME521
Nozzle ￠19 L35
HRME517
Nozzle ￠13 L65
HRME516
Nozzle ￠16 L65
HRME512
Nozzle ￠19 L65
Welding Contact tip / Torch tip
MA050
Contact Tip E-CU 5/16''*55*0.8mm
MA051
Contact Tip E-CU 5/16''*55*0.9mm
MA052
Contact Tip E-CU 5/16''*55*1.0mm
MA053
Contact Tip E-CU 5/16''*55*1.2mm
MA054
Contact Tip E-CU 5/16''*55*1.6mm
MA040
Contact Tip E-CU 5/16''*73*0.8mm
MA041
Contact Tip E-CU 5/16''*73*0.9mm
MA042
Contact Tip E-CU 5/16''*73*1.0mm
MA043
Contact Tip E-CU 5/16''*73*1.2mm STD
MA044
Contact Tip E-CU 5/16''*73*1.6mm
MA060
Contact Tip E-CU ￠8*M8*30*0.8mm
MA061
Contact Tip E-CU ￠8*M8*30*0.9mm
MA062
Contact Tip E-CU ￠8*M8*30*1.0mm
MA062
Contact Tip E-CU ￠8*M8*30*1.2mm
MA064
Contact Tip E-CU ￠8*M8*30*1.6mm

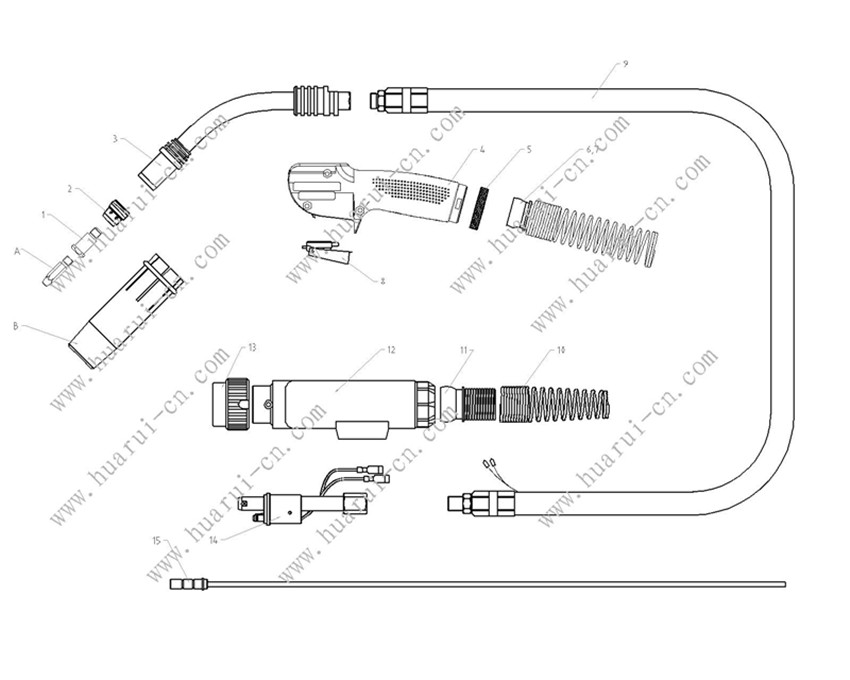

Welding Torch Spare parts
HRMB 405
Tip Holder 5/16''
HRMD 490
Insulator
HRMB 405
Tip Holder 5/16''
HRMD 490
Insulator
HRMB 406
Tip Holder M8
HRMD 491
HRMD 491
HRMB 406
Tip Holder M8
HRMD 491
HRMD 491
