WP 12 Water Cooled Cooled Argon Arc Welding Torch
Specifications
Item
TIG WP-12 Water Cooled Tungsten Argon Arc Welding Torch
Rating
500A DC, 100％ Duty Cycle, Tungsten Diameter: 1.6-6.4mm
Rear Connector
5/8''-18 UNF RH, 7/8''-14 UNF LH, 5/8''-18 UNF LH
Packing
1set/box neutral packing, 5sets/Carton Box
Certification
ISO9001, CCC, CE,

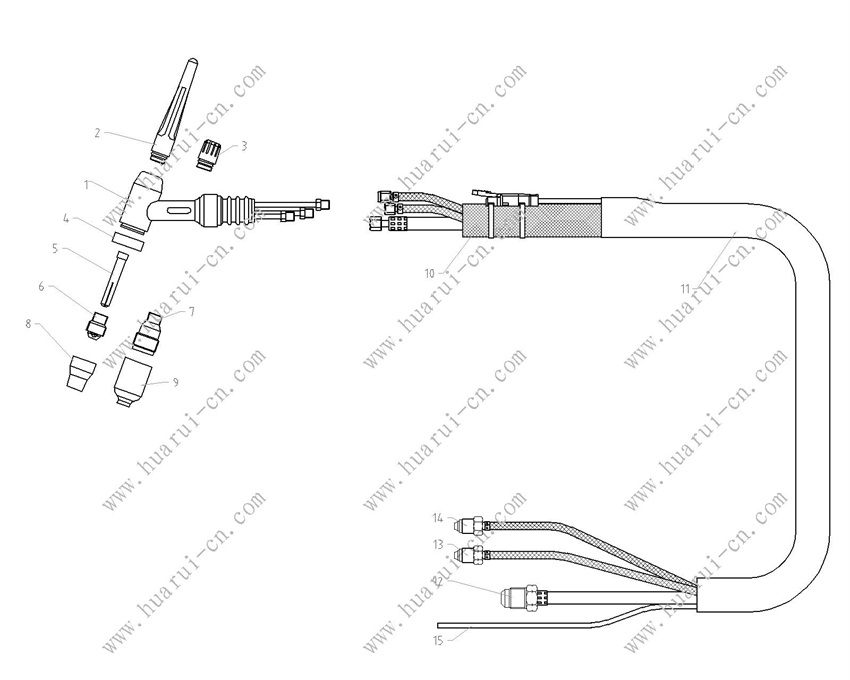

CONSUMABLES PARTS
WP-12
Torch body
WP-12V
Torch body
56Y44
Back Cap Long
56Y45
Back Cap Short
12NG
Cup Gasket
85Z14, 1.6MM
Collet
85Z15, 2.4MM
Collet
85Z16, 3.2MM
Collet
85Z17, 4.0MM
Collet
85Z18, 4.8MM
Collet
85Z19, 6.4MM
Collet
11WP65
Collet Body,all size
11GL16 1.6MM
Gas Lens Body
11GL332 2.4MM
Gas Lens Body
11GL18 3.2MM
Gas Lens Body
CONSUMABLES PARTS
11GL53 4.0MM
Gas Lens Body
11GL36 4.8MM
Gas Lens Body
14N57, 4
Ceramic Cup
14N58, 5
Ceramic Cup
14N59, 6
Ceramic Cup
14N60, 7
Ceramic Cup
14N61, 8
Ceramic Cup
14N61-10, 10
Ceramic Cup
14N61-12, 12
Ceramic Cup
57N75, 6
Ceramic Cup for Gas Lens
57N74, 8
Ceramic Cup for Gas Lens
53N88, 10
Ceramic Cup for Gas Lens
53N87, 12
Ceramic Cup for Gas Lens
950
Micro Switch Bulbous Button
950F
Micro Switch Flat Button
85WP13
Handle,smooth
40V82R
Gas hose, 4m
40V82RL
Gas hose, 8m
40V84R
Power Cable, 4m
40V84RL
Power Cable, 8m
40V83R
Water hose, 4m
40V83RL
Water hose, 8m
609123
Protective Neoprene Cover, 4m
609125
Protective Neoprene Cover, 8m
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only
