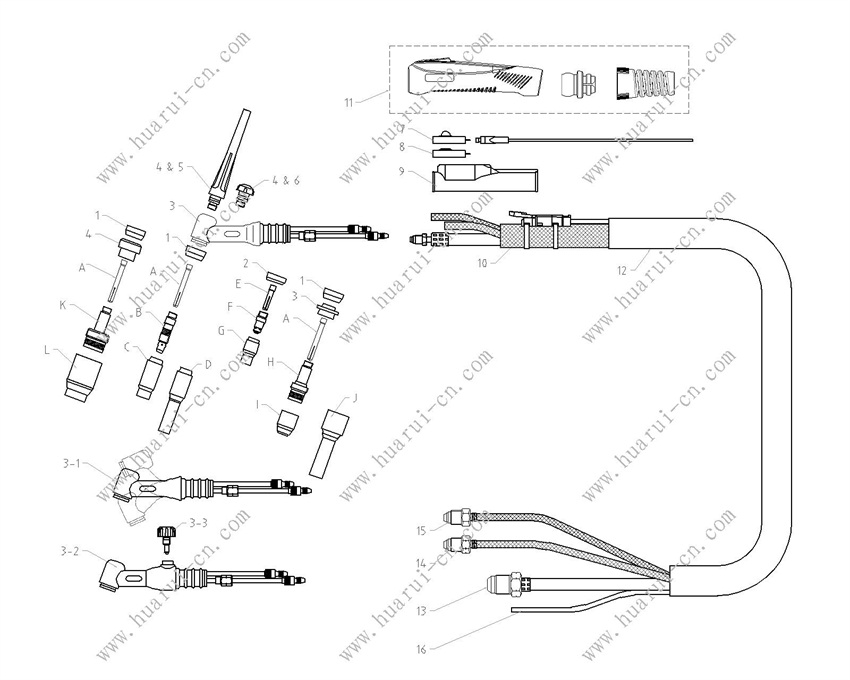

WP 18 Water Cooled Argon Arc Welding Torch

WP 18 Water Cooled
USER MANUAL

Get Price

Specifications

Item

TIG WP-18 Water Cooled Tungsten Argon Arc Welding Torch

Rating

350A DC, 250A AC, Tungsten Diameter: 0.5-4.0mm

Rear Connector

1/4G, M12*1, 3/8G, 35-50 connector, 5/8'' UNF RH, 7/8''-14UNF LH, 5/8'' 18UNF LH

Packing

1set/box
neutral packing, 5sets/Carton Box

Certification

ISO9001,
CCC, CE,
ROHS, TUV

Alumina nozzle/ Ceramic Nozzle

10N50

Std. Ceramic Cup Dia. 6mm

10N49

Std. Ceramic Cup Dia. 8mm

10N48

Std. Ceramic Cup Dia. 10mm

10N47

Std. Ceramic Cup Dia. 11mm

10N46

Std. Ceramic Cup Dia. 13mm

10N45

Std. Ceramic Cup Dia. 16mm

10N44

Std. Ceramic Cup Dia. 19mm

CONSUMABLES PARTS

18CG

Heat Shield Cup Gasket

18CG20

Heat Shield Cup Gasket

54N01

Heat Shield Cup Gasket

54N63

Heat Shield Cup Gasket(Large Dia Gas Lens)

WP18

Torch body(With Gasket)

98W18

Back Cap " O " Ring

57Y02

Back Cap Long

57Y04

Back Cap Short

950

Micro Switch Bulbous Button

950F

Micro Switch Flat Button

Collet

10N21

Collet Dia.0.5mm

10N22

Collet Dia.1.0mm

10N23

Collet Dia.1.6mm

10N24

Collet Dia.2.4mm

10N25

Collet Dia.3.2mm

54N20

Collet Dia.4.0mm

Collet Body

10N29

Collet Body Dia. 0.5mm

10N30

Collet Body Dia. 1.0mm

10N31

Collet Body Dia. 1.6mm

10N32

Collet Body Dia. 2.4mm

10N28

Collet Body Dia. 3.2mm

406488

Collet Body Dia. 4.0mm

Gas Lens Collet Body

45V29

Gas Lens Body Dia. 0.5mm

45V24

Gas Lens Body Dia. 1.0mm

45V25

Gas Lens Body Dia. 1.6mm

45V26

Gas Lens Body Dia. 2.4mm

45V27

Gas Lens Body Dia. 3.2mm

45V28

Gas Lens Body Dia. 4.0mm

CONSUMABLES PARTS

950-40

Bulbous Micro switch C/W 4mt 2 Core Cable

950-80

Bulbous Micro switch C/W 8mt 2 Core Cable

RDZ0590

Switch Boot

607663

Switch Retaining Boot

609123

Protective Neoprene Cover, 4m

609125

Protective Neoprene Cover, 8m

W5025

Single Ear Clamp

10N15

Handle

315071

Insulation Boot

WP18FX

Flexible Torch Body

WP18SP

Straight Torch Body

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only
