WP 26-1 Gas-Cooled Argon Arc Welding

WP 26-1 Gas-Cooled Argon
USER MANUAL

Get Price

Specifications

Item

TIG WP-26 Gas Cooled Tungsten Argon Arc Welding Torch

Rating

200A DC, 160A AC, Tungsten Diameter: 0.5-3.2mm

Rear Connector

M12*1, 35-50 connector, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH

Packing

1set/box neutral packing, 5sets/Carton Box

Certification

ISO9001, CCC, CE,
ROHS, TUV

Alumina nozzle/ Ceramic Nozzle

10N50

Std. Ceramic Cup Dia. 6mm

10N49

Std. Ceramic Cup Dia. 8mm

10N48

Std. Ceramic Cup Dia. 10mm

10N47

Std. Ceramic Cup Dia. 11mm

10N46

Std. Ceramic Cup Dia. 13mm

10N45

Std. Ceramic Cup Dia. 16mm

10N44

Std. Ceramic Cup Dia. 19mm

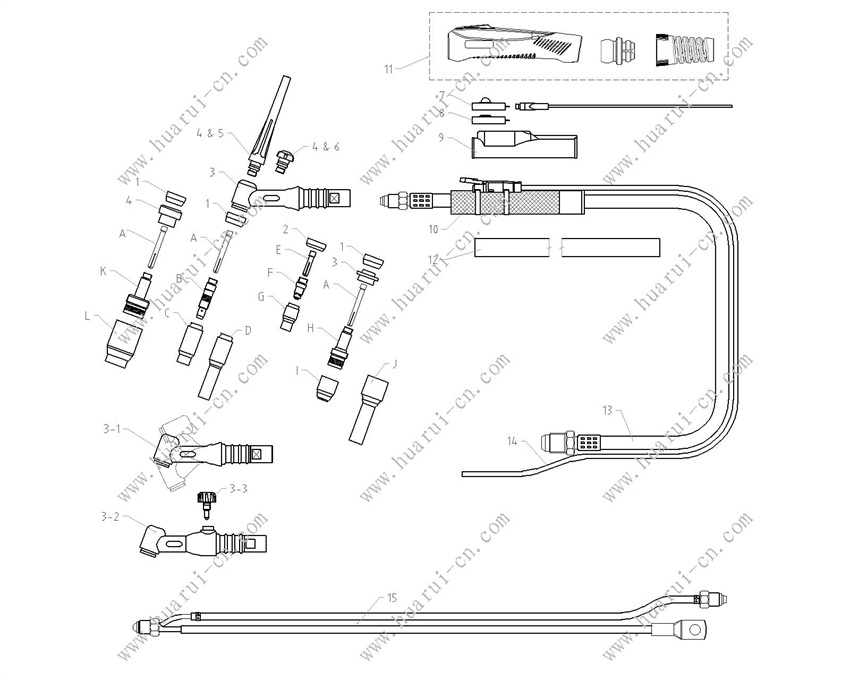

CONSUMABLES PARTS

18CG

Heat Shield Cup Gasket

18CG20

Heat Shield Cup Gasket

54N01

Heat Shield Cup Gasket

54N63

Heat Shield Cup Gasket(Large Dia Gas Lens)

WP26

Torch body(With Gasket)

98W18

Back Cap " O " Ring

57Y02

Back Cap Long

57Y04

Back Cap Short

950

Micro Switch Bulbous Button

950F

Micro Switch Flat Button

950-40

Bulbous Micro switch C/W 4mt 2 Core Cable

Collet

10N21

Collet Dia.0.5mm

10N22

Collet Dia.1.0mm

10N23

Collet Dia.1.6mm

10N24

Collet Dia.2.4mm

10N25

Collet Dia.3.2mm

Collet Body

10N29

Collet Body Dia. 0.5mm

10N30

Collet Body Dia. 1.0mm

10N31

Collet Body Dia. 1.6mm

10N32

Collet Body Dia. 2.4mm

10N28

Collet Body Dia. 3.2mm

Gas Lens Collet Body

45V29

Gas Lens Body Dia. 0.5mm

45V24

Gas Lens Body Dia. 1.0mm

45V25

Gas Lens Body Dia. 1.6mm

45V26

Gas Lens Body Dia. 2.4mm

45V27

Gas Lens Body Dia. 3.2mm

CONSUMABLES PARTS

950-80

Bulbous Micro switch C/W 8mt 2 Core Cable

RDZ0590

Switch Boot

607663

Switch Retaining Boot

609123

Protective Neoprene Cover, 4m

609125

Protective Neoprene Cover, 8m

10N15

Handle

315071

Insulation Boot

VS-1

Valve Stem

WP-26V

Torch Body With Valve

WP-26FX

Flexible Torch Body

WP-26VFX

Flexible Torch Body With Valve

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only
